Specification

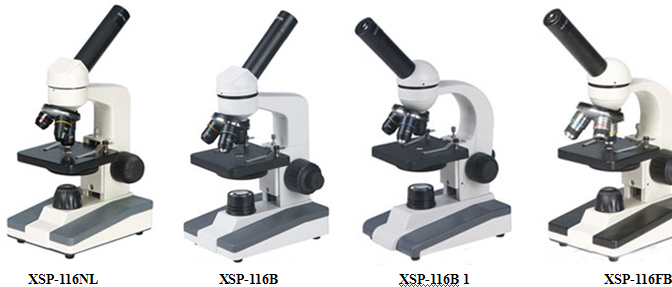

Model

116NL

116B

116F

116FB

Viewing Head

  Monoculer lnclined at 45˚

*

*

*

*

  360˚ Rotatable

*

*

*

Eyepiece

  WF10X

*

*

*

*

Objective

  Achromatic4X, 10X, 40X(S)

*

*

*

Stage

  Plain stage with slide clips

  Stage size: 90mmX90mm

*

*

*

*

Condenser

  Singlelens with Disc  diaphragm

*

*

*

*

Focusing

  Coarse Focusing Adjustment

*

*

*

  Coaxial coarse& fine focusing adjustment, Fine focusing scale value 0.002mm

*

*

Light Source

  Incandescent lamp 220V/20W or 110V/20W

*

*

*

*

Optional Accessory

  Eyepiece: WF16X, WF20X

  Objective: 20X, 60X（s）

  LED illumination
