 Descriptions£º
FEATURE:
1. Fully coated optical system. Mechanical length 160mm
2. DIN 45mm achromatic objectives, parfocal.
3. Focus by well-made rack & pinion, accurate & smooth, with built-in slip clutch and tension adjustment. Safety rack stop prevents damage to slides & objectives.
4. Disc and iris diaphragms for your option. NA0.65 condenser & spiral type Abbe NA1.25 condenser for your choice.
5. Well-painted metal base & stand, chemical resistant
6. The built-in electrics are CE approved.
|

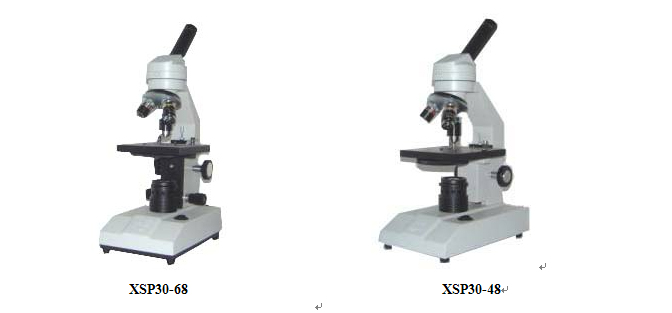

MODEL |
XSP30-68 |
XSP30-48 |
|
Viewing Head |
Monocular head 45˚ inclined, 360˚ Rotatable |
|
Eyepiece |
WF10X |
|
Objective |
Achromatic Objective 4X,10X,40X(S) |
|
Stage |
Plain stage with slide clips, stage size: 110 X120 mm |
|
Diaphragm |
Five-stop dial optical grating |
|
Condenser |
Single lens NA0.65 |
|
Focusing |
Separated coarse and fine focusing adjustment:12mm |
Coarse focusing adjustment:12mm |
|
Illumination |
Built-in incandescent lamp 20W |
|
Optional |
Eyepiece: WF16X, 100X Achromatic Objective , Moving scale, N.A1.25 condenser |
|
|
|
