SPECIFICATIONS

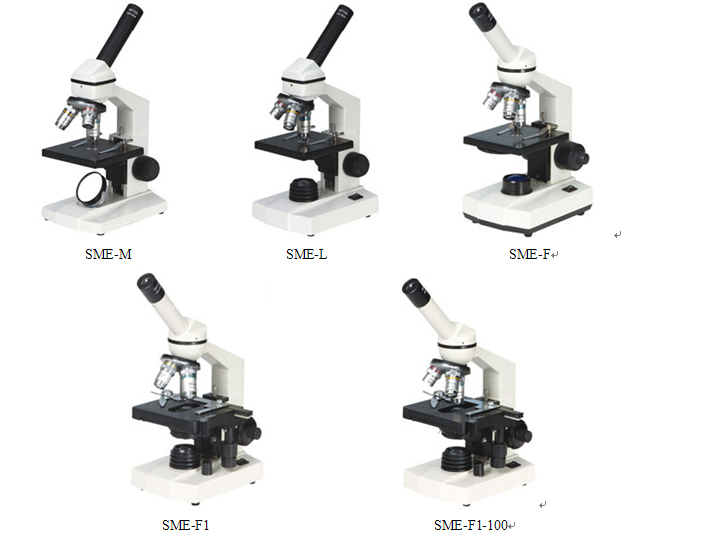

MODEL

SME-M

SME-L

SME-F

SME-F1

F1-100

Monocular Head

Inclined at 45˚

*

*

*

*

*

Rotatable 360˚

*

*

*

Eyepiece

WF10X

*

*

*

*

Objective

Achromatic objective 4X,10X,40X(S)

*

*

*

*

Achromatic objective 4X,10X,40X(S), 100X (S,Oil)

*

Stage

Plain stage with slide clips,stage size:110X110mm

*

*

*

Double Layers Mechinical stage

Stage size:110X126mm

*

*

Condenser

Single lens with Disc Diaphragm

*

*

*

Abbe NA 1.25 condenser with Iris Diaphragm

*

*

Focusing

Separate Coarse & Fine Focus Adjustment

*

*

Coaxial coarse & Fine Focus Adjustment

*

*

*

Power

220V/20W or 110V/20W Incandescent Lamp

*

*

*

*

Plan-concave Mirror

*
