Specification

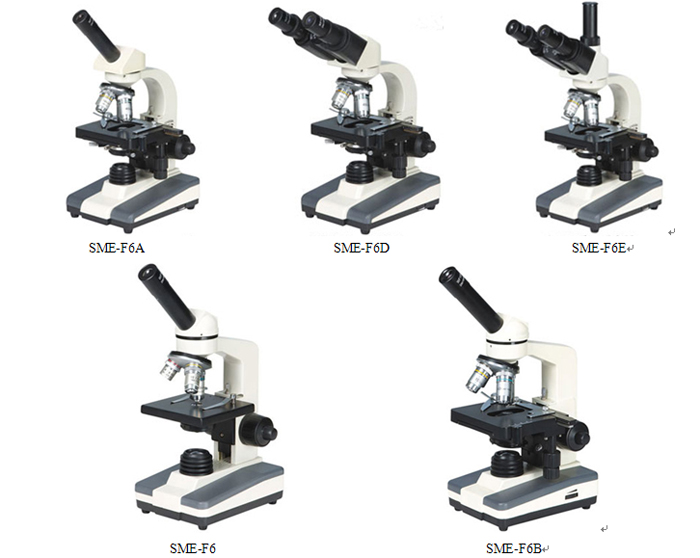

F6A

F6D

F6E

F6

F6B

Viewing Head

  Monocular Inclined at 45˚, 360˚ Rotatable

*

*

*

  Compensation Free Binocular Head,Inclined at 30˚ (55mm-75mm)

*

  Compensation Free Trinocular Head,Inclined at 30˚(55mm-75mm)

*

Eyepiece

  WF10X/18mm

*

*

*

*

*

Objective

  Achromatic 4X, 10X, 40X(s), 100X(s)oil

*

*

*

Achromatic 4X, 10X, 40X(s)

*

*

Stage

  Double layers mechanical stage, Stage size:110mmX126mm

  Moving Range:70mmX30mm

*

*

*

Condenser

  N.A.1.25 Abbe Condenser with iris diaphragm and filter

*

*

*

*

 N.A.0.65 Condenser with disc diaphragm

*

Focusing

  Coaxial coarse & fine focusing adjustment

  Fine focusing scale value 0.002mm, Focusing Range 30mm

*

*

*

*

*

Light Source

  Halogen bulb 6V/20W, AC 220V/110V

*

*

*

*

 Incandescent lamp 220V/20W or 110V/20W

*
