SPECIFICATIONS

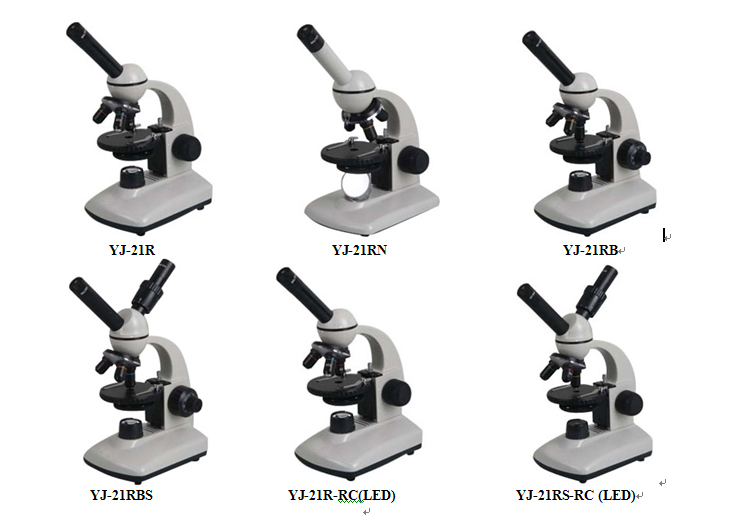

MODEL

21R

21RN

21RB

21RBS

R-RC

RS-RC

Viewing Head

Monocular head, 45˚ inclined, 360˚ Rotatable

*

*

*

*

Dual observation head, 45˚ inclined, 360˚ Rotatable

*

*

Eyepiece

WF10X

*

*

*

*

*

*

Objective

Achromatic Objective 4X,10X,40X(S)

*

*

*

*

*

*

Stage

Ф90mm Rounded stage with paried clips, 360˚ Rotatable

*

*

*

*

*

*

Diaphragm

SiX-stop diaphragm

*

*

*

*

*

*

Condenser

Single lens condenser N.A 0.65

*

*

*

*

*

*

Focusing

Coarse focus adjustment: 8mm

*

*

*

*

Coaxial coarse & Fine Focus Adjustment: 8mm

*

*

Power

Built-in incandescent lamp 15W

*

*

*

Plan-concave Mirror

*

Built-in LED lamp with a charger and 3 rechargeable batteries

*

*
