SPECIFICATIONS

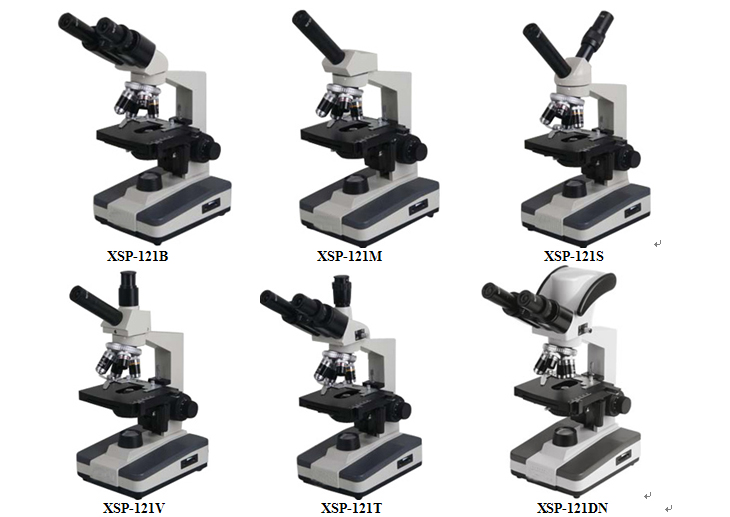

121B

121M

121S

121V

121T

121DN

Viewing Head

Compensation free binocular head, 30˚ inclined, 360˚ Rotatable

*

Monocular head, 45˚ inclined, 360˚ Rotatable

*

Dual viewing head, 45˚ inclined, 360˚ Rotatable

*

Dual viewing head, 30˚ inclined and vertical, 360˚ Rotatable

*

Compensation free trinocular head, 30˚ inclined, 360˚ Rotatable

*

Articulated Free Binocular Head, Inclined at 30˚, 360˚ Rotatable, Built-in Digital Camera System, Resolution:1280(H)X1024(V), 1/2Chip, USB2.0 with Micro-image Process Software

*

Eyepiece

WF10X

*

*

*

*

*

*

Objective

Achromatic Objective 4X,10X,40X(S), 100X(S, Oil)

*

*

*

*

*

*

Stage

Double layers mechanical stage 125X130mm, moving range: 30X60mm

*

*

Diaphragm

Ф2mm- Ф30mm iris diaphragm and filter

*

*

*

*

*

*

Condenser

Abbe condenser N.A 1.25

*

*

*

*

*

*

Focusing

Coaxial coarse & Fine Focus Adjustment: 20mm

*

*

*

*

*

*

Power

Built-in adjustable brightness halogen lamp 6V/20W

*

*

*

*

*

*
