SPECIFICATION

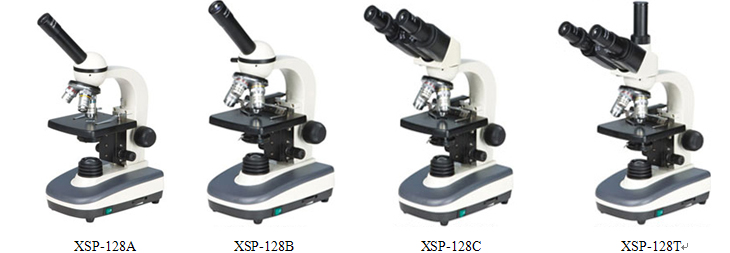

MODEL

128

128A

128B

128C

128T

Viewing Head

Monocular Head, Inclined at 45˚, 360˚ Rotatable

*

*

*

Binocular Head, Inclined at 30˚, 360˚Rotatable

*

Trinocular head, Inclined at 30˚, 360˚ Rotatable

*

Eyepiece

 WF10X

*

*

*

*

*

Objective

Achromatic Objective 4X,10X,40X(S)

*

*

*

*

*

Achromatic Objective 100X(S)Oil

*

*

*

Stage

Plain stage with slide clips, Stage size:120X125mm

*

*

Attachable mechanical stage, moving Rang:60X30 mm

*

*

*

Condenser

Single lens with Disc Diaphragm

*

NA0.65 Single lens with Iris Diaphragrn

*

Abbe NA 1.25 condenser with Iris Diaphragm & Filter

*

*

*

Focusing

Separate Coarse & Fine Focus Adjustment

*

*

*

*

*

Power

Incandescent lamp220V/20W or 110V/20W

*

Fluorescent lamp 220V/5W or 110V/5W

*

Halogen Tungsten Bulb 200V/110V 6V/20W, Adjustable Brightness

*

*

*
