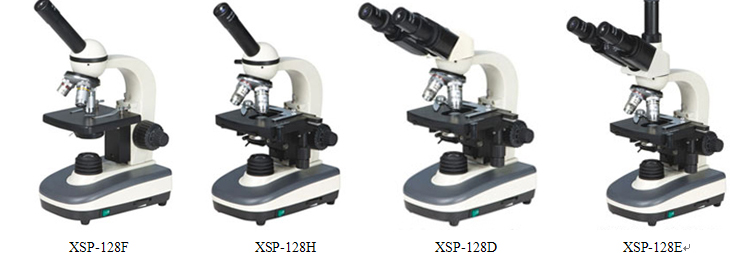

Name:XSP-128 SERIES
Descriptions£º



FEATURE:

1.         Fully coated optical system. Mechanical tube length 160mm

2.         DIN 45mm achromatic objectives, parfocal.

3.         Focusing stop to prevent objectives & slides from damaging

4.         Power supply 110V or 220V, CE approval

5.         360˚ rotatable

6.         Coarse and fine focus adjustment, range 30mm

7.         Built-in illumination, adjustable brightness.

8.         A wide range of accessories to be equipped with this microscope for multi-purpose



SPECIFICATION

MODEL

128M

128F

128H

128D

128E

Viewing head

Monocular head, Inclined at 45˚, 360˚ Rotatable

*

*

*





Binocular head, Inclined at 30˚, 360˚ Rotatable







*



Trinocular head, Inclined at 30˚, 360˚ Rotatable









*

Eyepiece

 WF10X

*

*

*

*

*

Objective

Achromatic Objective 4X,10X,40X(S)

*

*

*

*

*

Achromatic Objective 100X(S)Oil





*

*

*

Stage

Plain stage with slide clips Stage size:120X125mm

*

*







Attachable Mechanical stage Moving Rang:60X30mm





*

*

*

Condenser

Single lens with Disc Diaphragmr

*









NA0.65 Single lens with Iris Diaphragrn



*







Abbe NA 1.25 condenser with Iris Diaphragm & Filter





*

*

*

Focusing

Coaxial Coarse & Fine Focus Adjustment

*

*

*

*

*

Power

Incandescent lamp220V/20W or 110V/20W

*









Fluorescent lamp 220V/5W or 110V/5W



*







Halogen Tungsten Bulb 200V/110V 6V/20W

Adjustable Brightness





*

*

*
