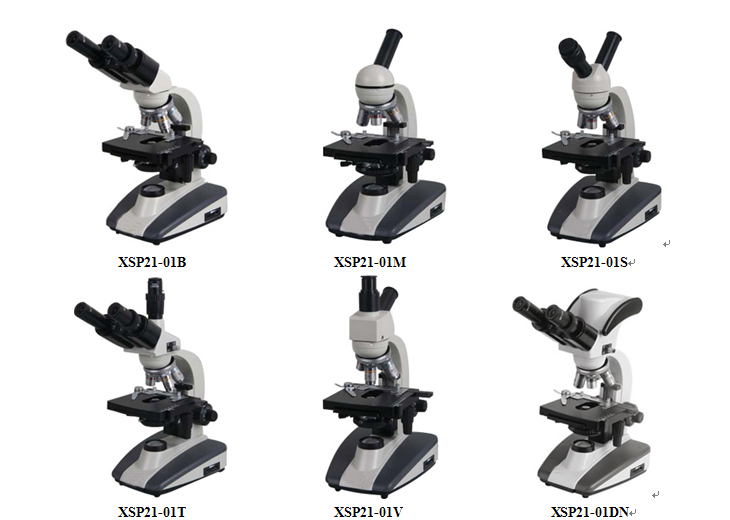

SPECIFICATION

21-01B

21-01M

21-01S

21-01T

21-01V

2101DN

Viewing head

Monocular head, Inclined at 45˚, 360˚ Rotatable

*

Binocular head, Inclined at 30˚, 360˚ Rotatable

*

Trinocular head, Inclined at 30˚, 360˚ Rotatable

*

Dual observation head, Inclined at 45˚, 360˚ Rotatable

*

Dual observation head, 30˚ Inclined and vertical, 360˚ Rotatable

*

Articulated Free Binocular Head, Inclined at 30˚, 360˚  Rotatable, Built-in Digital Camera System, Resolution: 1280 (H) X 1024(V), 1/2Chip, USB2.0 with Micro-image Process Software

*

Eyepiece

 WF10X

*

*

*

*

*

*

Objective

Achromatic Objective 4X,10X,40X(S), 100X(S)Oil

*

*

*

*

*

*

Stage

Double Layers Mechinical stage125X130mm

*

*

*

*

*

*

Diaphragm

Ф2mm- Ф30mm iris diaphragm and filter

*

*

*

*

*

*

Condenser

Abbe NA 1.25 condenser with Iris Diaphragm & Filter

*

*

*

*

*

*

Focusing

Coaxial Coarse & Fine Focus Adjustment

*

*

*

*

*

*

Power

Built-in Adjustable Brightness Halogen lamp 6V/20W.

*

*

*

*

*

*
