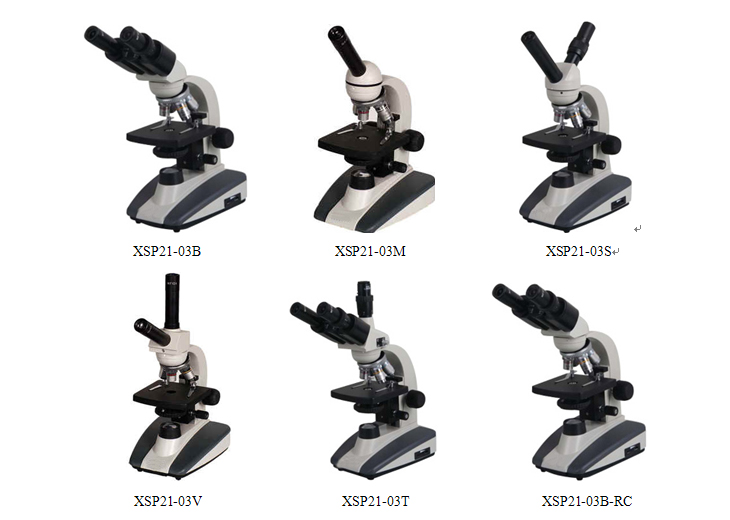

SPECIFICATION

21-03B

21-03M

21-03S

21-03V

21-03T

B-RC

Viewing head

Monocular head, Inclined at 45˚, 360˚ Rotatable

*

Binocular head, Inclined at 30˚, 360˚ Rotatable

*

*

Dual observation head, Inclined at 45˚, 360˚ Rotatable

*

Dual observation head, 30˚ Inclined and vertical, 360˚ Rotatable

*

Trinocular head, Inclined at 30˚, 360˚ Rotatable

*

Eyepiece

 WF10X

*

*

*

*

*

*

Objective

Achromatic Objective 4X,10X, 40X(S), 100X(S)Oil

*

*

*

*

*

*

Stage

Double Layers Mechinical stage125X125mm

*

*

*

*

*

*

Diaphragm

Ф2mm- Ф30mm iris diaphragm and filter

*

*

*

*

*

*

Condenser

Abbe NA 1.25 condenser with Iris Diaphragm & Filter

*

*

*

*

*

*

Focusing

Separated Coarse & Fine Focus Adjustment: 20mm

*

*

*

*

*

*

Illumination

Built-in adjustable brightness halogen lamp 6V/20W, or  incandescent lamp, or fluorescent

*

*

*

*

*

Built-in LED lamp, with a charger and 3 rechargeable batteries

*

*
