 Descriptions£º
FEATURE:
1. Fully coated optical.
2. System.Mechanical Tube length 160mm.
3. 45MM Achromatic Objectives, Parfocal.
4. Focusing Stop to Prevent Objectives & Slides from Damaging.
5. Power supply 110V or 220V CE Approval
6. 360˚ Rotatable.
7. Coarse and Fine Focus Adjustment: Range 30mm.
8. Built-in Illumination. Adjustable Brightness.
9. A Wide Range of Accessories to be Equipped with this Microscope for Multi-purpose.
|

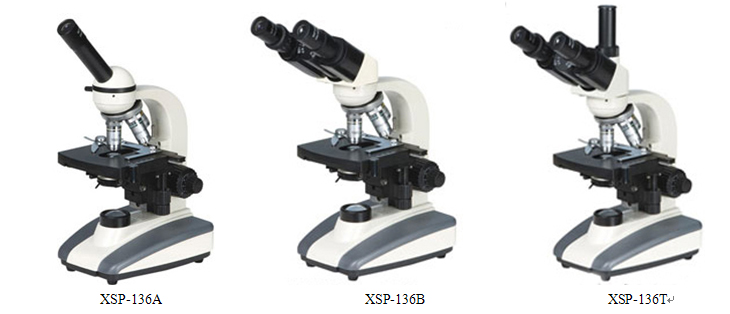

SPECIFICATION |
XSP-136A |
XSP-136B |
XSP-136T |
|
Viewing Head |
Monocular Head Inclined at 45˚, Rotablable 360˚ |
* |
|
|
|
Compensation Binocular Head Inclined at 30˚, Rotablable 360˚, Interpupillary Distance 55-75mm |
|
* |
|
|
Compensation Trinocular Head Inclined at 30˚,Interpupillary Distance 55-75mm |
|
|
* |
|
Eyepiece |
WF10X |
* |
* |
* |
|
Objective |
Achromatic objective 4X,10X,40X(S),100X(S)Oil |
* |
* |
* |
|
Stage |
Stage size:125X120mm Moving Rang:75X30mm |
* |
* |
* |
|
Condenser |
Abbe condenser with Iris Diaphragm & Filter NA 1.25 |
* |
* |
* |
|
Focusing |
Coaxial Coarse & Fine Focus Adjustment |
* |
* |
* |
|
Power |
Halogen lamp 200V/110V 6V/20W. Adjustable Brightness |
* |
* |
* |
|
|
|
