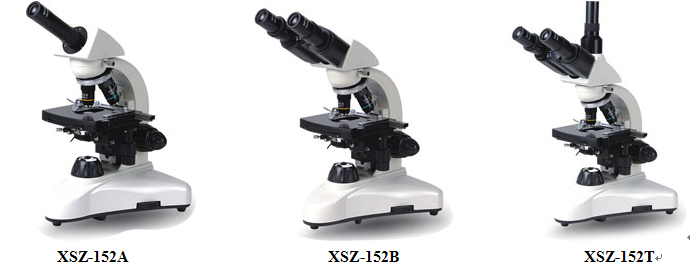

 Name:XSZ-152 SERIES |
| Descriptions£º
The series microscope is widely used in Biology. Histology, Pathology, Medicament, chemistry research and Clinical examination. It can also be used for education in Colleges and Schools.
|
Specification |
Model |
|
152A |
152B |
152T |
|
Viewing head |
Monocular Head.Inclined at 45˚ |
* |
|
|
|
Compensation Free Binocular Head .Inclined at 30˚ |
|
* |
|
|
Compensation Free Trinocular Head Inclined at 30˚ |
|
|
* |
|
Interpupillary Distance |
55mm -75mm |
* |
* |
* |
|
Eyepiece |
WF10X |
* |
* |
* |
|
Objective |
Achromatic objective: 4X, 10X, 40X(S), 100X(S)Oil |
* |
* |
* |
|
Stage |
Double layers mechanical stage, Stage size: 125mm X 130mm, Moving range: 75mm X 50mm |
* |
* |
* |
|
Condenser |
N.A1.25 Abbe condenser with iris diaphragm&filter |
* |
* |
* |
|
Focusing |
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism, Fine focusing scale Value 0.002mm |
* |
* |
* |
|
Collector |
High brightness Kohler illumination |
* |
* |
* |
|
Light source |
Halogen bulb 6V/20W.AC 85V-230V, Adjustable brightness |
* |
* |
* |
|
|
|
|
