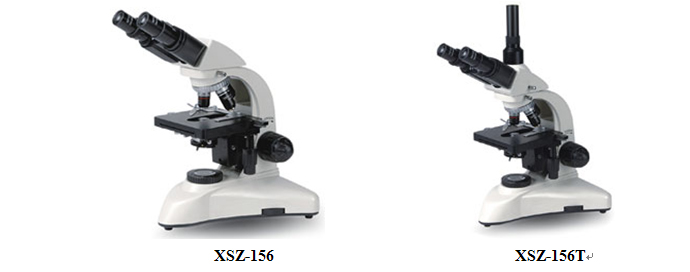

Name:XSZ-156 SERIES
Descriptions£º



This series microscope is specially developed for various applied scopes .It is widely used, from daily work to scientific research, in Biology, Histology, Pathology, Medicament chemistry research and Clinical examination. Because of higher capability with lower price and humanized configuration design. It becomes the first choices of individual, Colleges & schools, Hospitals and Scientific research organization.



Features:

1.         Wide-field Eyepiece.high light illumination and superior optical parts make the image clear ,sharp and bright.

2.         Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.

3.         Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.

4.         High precision focusing adjustment system and humanized configuration design provide operator more comfortable.



Specification

Model

156

156T

Viewing head

Compensation Free Binocular Head .Inclined at 30˚

*



Compensation Free Trinocular Head Inclined at 30˚



*

Interpupillary Distance

55mm -75mm

*

*

Eyepiece

WF10X

*

*

Objective

Achromatic objective: 4X, 10X, 40X(S), 100X(S)Oil

*

*

Stage

Double layers mechanical stage, Stage size: 140mm X 140mm, Moving range: 75mm X 50mm

*

*

Condenser

N.A1.25 Abbe condenser with iris diaphragm&filter

*

*

Focusing

Coaxial coarse & fine focusing adjustment with rack and pinion mechanism, Fine focusing scale Value 0.002mm

*

*

Collector

High brightness Kohler illumination

*

*

Light source

Halogen bulb 6V/20W.AC 85V-230V, Adjustable brightness

*

*
