Specificaon

157A

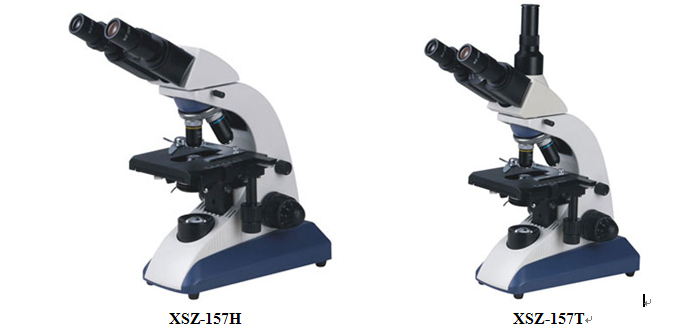

157H

157T

Viewing Head

  Monocular Inclined at 45˚, 360˚ Rotatble

*

  Compensation Free Binocular Head, Inclined at 30˚ (55mm-75mm)

*

  Compensation Free Trinoculaar Head, Inclined at 30˚ (55mm-75mm)

*

Eyepiece

  WF10X/18mm

*

*

*

Objective

  Achromatic4X, 10X, 40X(S), 100X(S)Oil

*

*

*

Nosepiece

  Backward Quadruple Nosepiece

*

*

*

Stage

  Double layer mechanical stage, Stage SiXe:140mmX132mm

  Moving Range:70mmX30mm

*

*

*

Condenser

  N.A.1.25 Abbe condenser with iris diaphragm and filter

*

*

*

Fcusing

  Coaxial coarse & fine focusing adjustmen

Fine focusing scale value 0.002mm

*

*

*

Light Source

  Halogen bulb 6V20W or 6V15W, AC 220V/110V

*

*

*

  Adjustable light intensity

Optional Accessory

  Eyepiece: WF16X, WF20X, P16X

  Objective: 20X, 60X(s)

  Semi-plan Objective:4X, 10X, 20X, 40X(s), 60X(s), 100X(s)oil

  Plan Objective:4X, 10X, 20X, 40X(s), 60X(s), 100X(s)oil

  Reflective Mirror, Demonstration(Teaching) HeadDark field and Phase contrast device

  Photography attchment and CCD Adapter 0.5X, 0.57X, 0.75X

  LED illumination
