SPECIFICATION

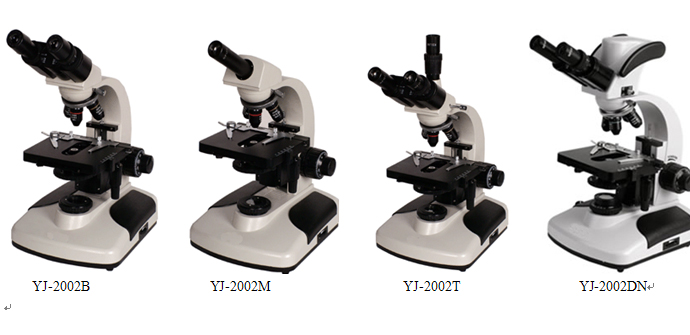

MODEL

2002B

2002M

2002T

2002DN

Viewing head

Monocular head, Inclined at 30˚, 360˚ Rotatable

*

Binocular head, Inclined at 30˚, 360˚ Rotatable

*

Trinocular head, Inclined at 30˚, 360˚ Rotatable

*

Articulated Free Binocular Head, Inclined at 30˚, 360˚ Rotatable, Built-in Digital Camera System, Resolution:1280(H)X1024(V), 1/2Chip, USB2.0 with Micro-image Process Software

*

Eyepiece

 WF10X, WF16X

*

*

*

*

Objective

Achromatic Objective 4X,10X,40X(S), 100X(S)Oil

*

*

*

*

Stage

Double Layers Mechinical stage140X155mm, Moving range: 50X70mm

*

*

*

*

Diaphragm

Ф2mm-Ф30mm iris diaphragm and filter

*

*

*

*

Condenser

Abbe NA 1.25 condenser with Iris Diaphragm & Filter

*

*

*

*

Focusing

Coaxial Coarse & Fine Focus Adjustment:30mm

*

*

*

*

Power

Built-in adjustable brightness halogen lamp 6V/20W, Kohler illumination

*

*

*

*
