Specificaon

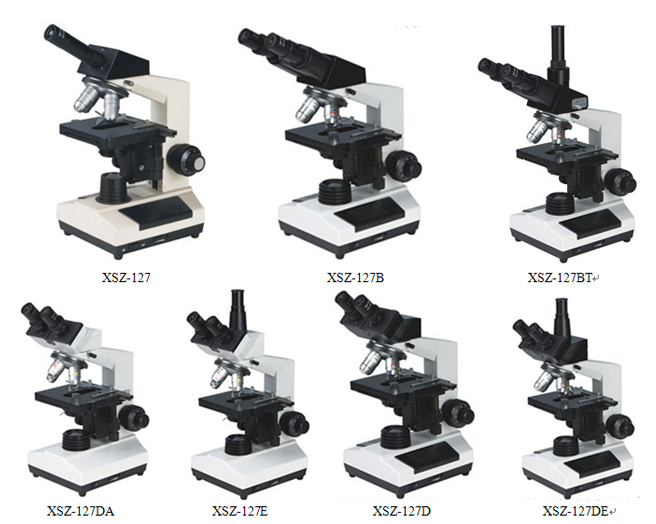

127

127B

127BT

127DA

127E

127D

127DE

Viewing Head

  Monocular Inclined at 45˚, 360˚ Rotatble

*

  Compensation Free Binocular Head, Inclined at 30˚

*

  Compensation Free Trinoculaar Head, Inclined at 30˚

*

Sliding Binocular Head Inclined at 45˚

*

*

Sliding Trinocular Head Inclined at 45˚

*

*

Eyepiece

  WF10X/18mm

*

*

*

*

*

*

*

Objective

  Achromatic 4X,10X,40X(S), 100X(S, Oil)

*

*

*

*

*

*

*

Stage

  Double layer mechanical stage, size: 140mmX140mm Moving Range:75mmX50mm

*

*

*

*

*

*

*

Condenser

  N.A.1.25Abbe condenser with iris diaphragm and filter

*

*

*

*

*

*

*

Fcusing

  Coaxial coarse & fine focusing adjustmen

  Fine focusing scale value 0.002mm

*

*

*

*

*

*

*

Light Source

  Halogen bulb 6V20W or 6V15W, AC 220V/110V Adjustable light intensity

*

*

*

*

*

*

*

Base

  Black decorating panel

*

*

*

*

*
