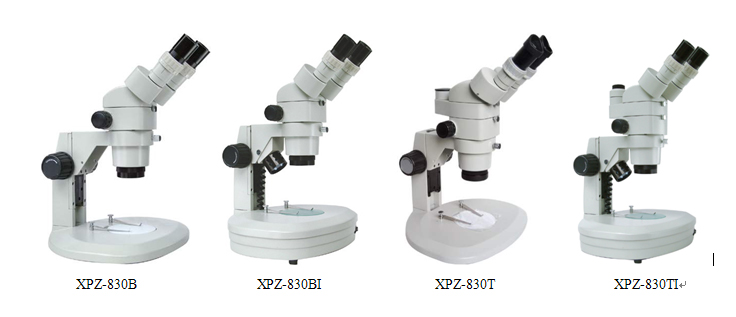

 Descriptions£º
XPZ-830B: Without the light source
XPZ-830BI : With the light source of reflection and transmitting illuminator
XPZ-830T: Without the light source
XPZ-830TI: Trinocular that can be taken apart with the light source of reflection and transmitting illuminator
Standard configurations
|
zoom ratio |
1:8.3 |
|
Objective zoom range |
0.6X-5X |
|
Eyepiece |
SWF10X/22mm |
|
Working distance |
95mm |
|
Interpupillary distance adjustment range |
48mm-75mm |
|
Binocular head |
inclination of 45˚ |
|
Diopter adjustment |
+-5 diopter |
|
Optical Body Rotation |
360˚ |
|
Voltage input |
110V/60Hz or 220V/50Hz |
|
Top halogen lamp |
6V15W adjustable brightness |
|
Bottom fluorescent lamp |
5W |
Technical data
|
Project |
Auxiliary Objective |
Eyepiece |
Working distance (mm) |
|
SWF10X |
WFl5X |
WF20X |
WF25X |
|
Magnification |
Visual field |
Magnification |
Visual field |
Magnification |
Visual field |
Magnification |
Visual field |
|
Data |
0.5X |
3X-25X |
73-8.8 |
4.5X-37.5X |
53.3-6.4 |
6X-50X |
43.3-5.2 |
7.5X-62.5X |
40-4.8 |
200 |
|
0.75X |
4.5X-37.5X |
49-5.9 |
6.75X-56.25X |
35.5-4.2 |
9X-75X |
28.8-3.5 |
11.25X-93.8X |
26.6-3.2 |
125 |
|
1X |
6X-50X |
36.7-4.4 |
9X-75X |
26.7-3.2 |
12X-100X |
21.6-2.6 |
15X-125X |
20-2.4 |
95 |
|
1.5X |
9X-75X |
24.4-2.9 |
13.5X-112.5X |
17.7-2.1 |
18X-150X |
14.4-1.7 |
22.5X-187.5X |
13.3-1.6 |
55 |
|
2X |
12X-100X |
18.4-2.2 |
18X-150X |
13.3-1.6 |
24X-200X |
10.8-1.3 |
30X-250X |
10-1.2 |
35 |
|
