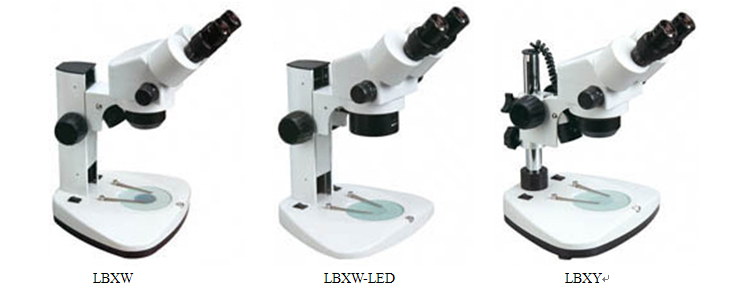

Name:LBX SERIES
Descriptions:



FEATURES:

1.         Sharp stereo erect image over a wide field of view

2.         45˚ inclined and rotatable binocular head

3.         The interpupillary distance is between55mm-75mm,The left ocular-tube with diopter adjustment +-5dp

4.         Inside incident light, brightness adjustable, various illumination for selection

5.         Power supply 110V/60Hz or 220V/50Hz

6.         product has CE approval



Technique data:

Program

data

Zoom ratio

1:6.7

Objective zoom range

0.75X-5X

Eyepiece

SWF10XФ23

Working distance

113mm

Interpupillary distance adjustment

55mm-75mm

Diopter adjustment

+-5dioper

Binocular head viewing angel

Inclination of 45˚

Binocular head rotating angel

360˚

Focusing range

80mm

Lux of incident LED light

6800Lux

Lux of transmitted LED light

2100Lux



Optical Data:

       Objective

Eyepiece

Main body

With 0.5X objective

With 0.5X objective

With 2X objective

0.75X5X

0.375X2.5X

1.125X7.5X

1.5X10X

5X

Total magnification

3.75X25X

1.875X12.5X

5.625X37.5X

7.5X50X

Diameter of visual field

Ф33Ф5

Ф65Ф10

Ф22Ф3.3

Ф16Ф2.5

10X

Total magnification

7.5X50X

3.75X25X

11.25X75X

15X100X

Diameter of visual field

Ф33Ф5

Ф65Ф10

Ф22Ф3.3

Ф16Ф2.5

15X

Total magnification

11.25X75X

5.625X37.5X

16.875X112.5X

22.5X150X

Diameter of visual field

Ф24Ф4.2

Ф48Ф8.5

Ф16Ф2.8

Ф12Ф2

20X

Total magnification

15X100X

7.5X50X

22.5X150X

30X200X

Diameter of visual field

Ф20Ф3.5

Ф40Ф7

Ф13.3Ф2.3

Ф10Ф1.8

25X

Total magnification

18.75X125X

9.375X62.5X

28.125X187.5X

37.5X255X

Diameter of visual field

Ф15.8Ф2.4

Ф31.5Ф4.8

Ф10.5Ф1.6

Ф7.9Ф1.2



working distance

113mm

220mm

50mm

35mm
