Specification

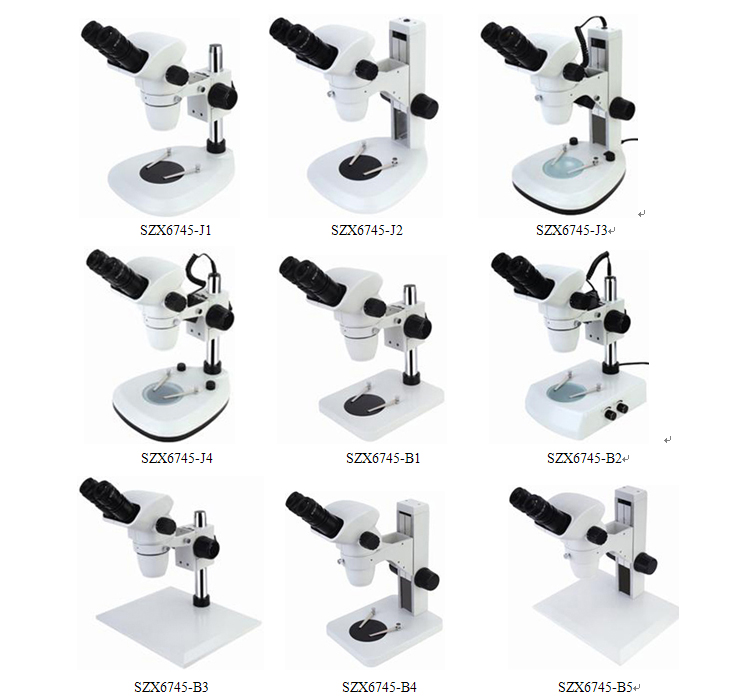

J1

J2

J3

J4

B1

B2

B3

B4

B5

Binocular & Trinocular Head Angle of viewing: 45˚

*

*

*

*

*

*

*

*

*

Zoom ratio: 1:6.7

*

*

*

*

*

*

*

*

*

Eyepiece: WF10X/22mm Diopter Adjustment Eyepiece

*

*

*

*

*

*

*

*

*

Objective: 0.67X-4.5X

*

*

*

*

*

*

*

*

*

Magnification: 6.7X-45X

*

*

*

*

*

*

*

*

*

Interpupillary distance adjustment range: 54-75mm

*

*

*

*

*

*

*

*

*

Working distance: 105mm

*

*

*

*

*

*

*

*

*

Illumination: Reflected & transmitted LED illumination, adjustable brightness, switch Independent, Low-voltage security, small power consumption, low heat, long life

*

*

*

Base

Pillar sector base with clip and Ф95mm black &white working board, Pillar height: 240mm, Diameter: Ф32mm, Base Size: 285X238mm

*

Vertical sector base with clip andФ95mm black &white working board, Vertical Size: 300mm, Focus distance: 100mm, Drawtube Size:Ф76mm, Base Size: 285X238mm

*

Vertical sector base, Vertical Size: 300mm, Focus distance: 100mm, Drawtube Size:Ф76mm, Base Size: 285X238mm

*

Pillar sector base, Vertical Size: 240mm, Base Size: 285X238mm

*

Pillar squareness base, with clip and Ф95mm black & white working board, Pillar height: 240mm, Diameter: Ф32mm, Base Size: 200X255X22mm

*

Pillar base with clip and Ф95mm black &white working board, Pillar height: 240mm, Diameter: Ф32mm, Base Size: 20X255X40mm

*

Pillar big size squareness base, Pillar height: 240mm, Diameter: Ф32mm, Base Size: 320X260X16mm

*

Vertical squrareness base with clip and Ф95mm black &white working board, Vertical Size: 300mm, Focus distance: 100mm, Drawtube Size: Ф76mm, size: 200X255X22mm

*

Vertical big size squrareness base, Vertical Size: 300mm, Focus distance: 100mm, Drawtube Size: Ф76mm, Base Size: 320X260X16mm

*
