 Descriptions£º
FEATURE:
1. Sharp stereo erect image over a wide field view.
2. Upright binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment +-5dp. The interpupillary distance is between 55-75mm.
3. Three kinds of 90˚ rotational objective selection: 1X/2X, 1X/3X, 2X/4X

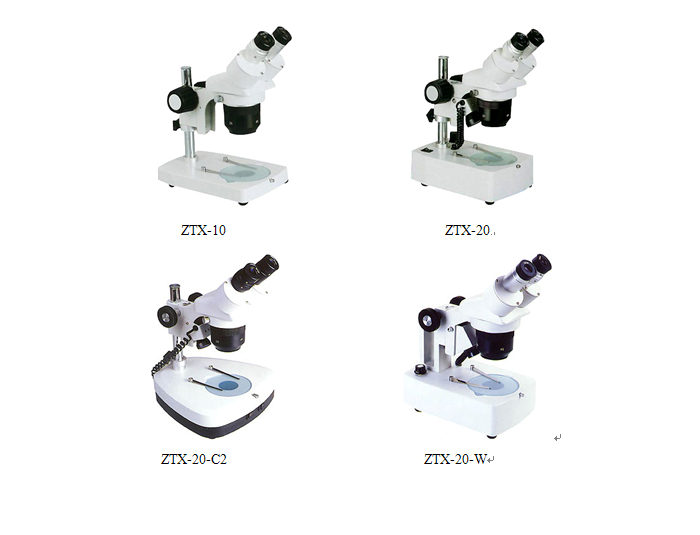

4. ZTX-10/ZTX-20 series supplied with pillar style stand, ZTX-10-C series supplied with fan base and pillar stand, ZTX-20-W series supplied with arm curved style stand.
5. Electric apparatus has CE approval.
6. Power supply 110V/60Hz or 220V/50Hz.
7. Illuminatior: Upper reflected halogen light 12V/10W, Down halogen light 12V/10W
8. Each set packed in styrofoam and in an inner box. Four sets in one carton.
9. A wide range of optional accessories
SPECIFICATIONS:
|
MODEL |
EYEPIECE |
OBJECTIVE |
PLATE |
ILLUMINATOR |
|
ZTX-10 |
WF10X |
Rotated
1X-2X
1X-3X
2X-4X |
White/black |
No |
|
ZTX-10-W |
WF10X |
White/black |
No |
|
ZTX-10-C1 |
WF10X |
White/black |
No |
|
ZTX-20 |
WF10X |
Frosted glass |
Incident illumination & transmitted illumination |
|
ZTX-20-W |
WF10X |
Frosted glass |
Incident illumination & transmitted illumination |
|
ZTX-20-C2 |
WF10X |
Frosted glass |
Incident illumination & transmitted illumination |
OPTICAL DATA:
|
Eyepiece |
Stand Objective |
Auxiliary Objective |
|
0.5X |
0.75X |
1.5X |
2.0X |
|
Objective |
Field of View |
Working Distance |
Field of View |
Working Distance |
Field of View |
Working Distance |
Field of View |
Working Distance |
Field of View |
Working Distance |
|
5X |
1X |
20 |
80 |
37.5 |
120 |
24 |
75 |
14 |
40 |
11 |
25 |
|
2X |
10 |
80 |
19 |
120 |
12 |
75 |
7 |
40 |
5.5 |
25 |
|
3X |
7 |
80 |
12.5 |
120 |
8 |
75 |
4.5 |
40 |
3.5 |
25 |
|
4X |
5 |
80 |
19 |
120 |
6 |
75 |
3.5 |
40 |
2.8 |
25 |
|
10X |
1X |
20 |
80 |
37.5 |
120 |
25 |
75 |
14 |
40 |
11 |
25 |
|
2X |
10 |
80 |
19 |
120 |
12 |
75 |
7 |
40 |
5.5 |
25 |
|
3X |
7 |
80 |
12.5 |
120 |
8 |
75 |
4.5 |
40 |
3.5 |
25 |
|
4X |
5 |
80 |
19 |
120 |
6 |
75 |
3.5 |
40 |
3 |
25 |
|
15X |
1X |
15 |
80 |
30 |
120 |
18 |
75 |
10 |
40 |
8 |
25 |
|
2X |
7.5 |
80 |
15 |
120 |
9 |
75 |
5 |
40 |
4 |
25 |
|
3X |
5 |
80 |
9.5 |
120 |
6 |
75 |
3.5 |
40 |
3 |
25 |
|
4X |
3.8 |
80 |
7 |
120 |
4.5 |
75 |
2.8 |
40 |
2 |
25 |
|
20X |
1X |
10 |
80 |
19 |
120 |
12 |
75 |
7 |
40 |
5.5 |
25 |
|
2X |
5 |
80 |
10 |
120 |
6 |
75 |
3.5 |
40 |
2.5 |
25 |
|
3X |
3.5 |
80 |
6.2 |
120 |
4 |
75 |
2.4 |
40 |
2 |
25 |
|
4X |
2.5 |
80 |
4.7 |
120 |
3 |
75 |
2 |
40 |
1.5 |
25 |
|
