 Descriptions£º
FEATURE:
1. Sharp stereo erect image over a wide field of view
2. 45˚ inclined and 360˚ rotatable binocular head with locked-in eyepiece. The left and right ocular-tube with diopter adjustment +-5dp
3. Three kind of 90˚ 1X/2X,1X/3X,2X/4X,Two kinds of objective rotation for selection: DTX11 are rotated by objective cover, DTX21 are rotated by knob.
4. Power supply 110V/60Hz or 220V/50Hz
5. Product has CE approval
6. Illumination: L1.Upper reflected halogen light 12V 10W;down halogen light 12V 10W
L2.Upper reflected halogen light 12V10W
|
Objective Magnification |
EYEPIECES |
|
WF5X |
SWF10X |
WF15X |
WF20X |
Working distance (mm) |
|
Magnifi-cation |
Field of view (mm) |
Magnifi-
cation |
Field of view (mm) |
Magnifi-
cation |
Field of view (mm) |
Magnifi-
cation |
Field of view (mm) |
|
1X |
5X |
20.0 |
10X |
22.0 |
15X |
15.0 |
20X |
1.0 |
91.5 |
|
2X |
10X |
10.0 |
20X |
11.0 |
30X |
7.5 |
40X |
6.5 |
|
1X |
5X |
20.0 |
10X |
22.0 |
15X |
15.0 |
20X |
10.0 |
91.5 |
|
3X |
15X |
7.0 |
15X |
7.3 |
45X |
5.0 |
60X |
4.3 |
|
2X |
10X |
10.0 |
20X |
7.3 |
30X |
7.5 |
40X |
6.5 |
91.5 |
|
4X |
20X |
5.0 |
40X |
5.5 |
60X |
3.7 |
80X |
3.2 |
L3.Fiuorescnt tamp 5W for transmitted light and halogen lamp12V/10W for incident light
L4.Filuorescent lamp 5W for transmitted light and halogen lamp 12V/10W for incident light. Brightness is adjustable
L5.It always adopts led lights for the transmission and reflex illumination
1. Each packed in styrofoam and in an inner box, four sets in one canton

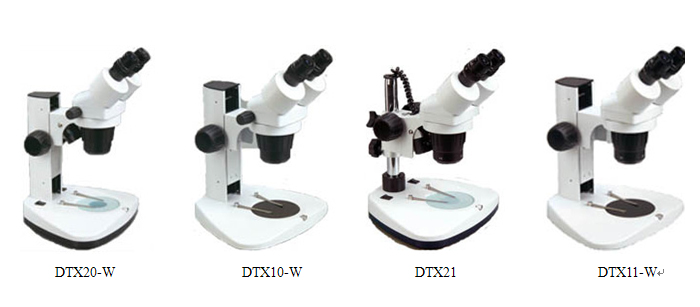

Specification:
|
Model |
Eyepiece |
Objective |
Plate |
Illumination |
|
DTX20-W |
SWF10X |
1X-2X
2X-4X
1X-4X |
Frosted glass |
Incident illumination & transmitted illumination |
|
DTX10-W |
SWF10X |
White/back |
Natural illumination |
|
DTX21 |
SWF10X |
Frosted glass |
Incident illumination & transmitted illumination |
|
DTX11-W |
SWF10X |
White/back |
Natural illumination |
|
