 Descriptions£º
FEATURE:
1. Sharp stereo erect image over a wide field view.
2. Upright binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment +-5dp. The interpupillary distance is between 55-75mm.
3. XTX-1(A, B, C) series with fixed style objective.
4. XTX-1(A, B, C) series supplied with pillar style stand.
5. Electric apparatus has CE approval
6. Power supply 110V/60Hz or 220V/50Hz.
7. Each set packed in styrofoam and in an inner box. Four sets in one carton.
8. Eyepiece WF5X, WF10X, WF15X, WF20X for selection
SPECIFICATIONS:
|
MODEL |
EYEPIECE |
OBJECTIVE |
PLATE |
ILLUMINATOR |
|

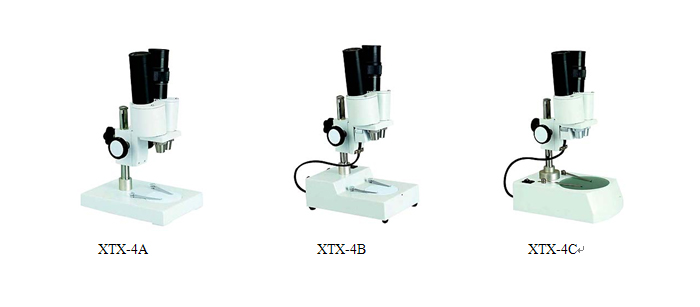

XTX-4A |
WF10X |
Fixed 2X |
White/black |
No |
|
XTX-4B |
WF10X |
Fixed 2X |
White/black |
Incident illumination |
|
XTX-4C |
WF10X |
Fixed 2X |
Frosted glass |
Incident illumination & transmitted illumination |
OPTICAL DATA:
|
Objective Magnification |
EYEPIECES |
Working Distance |
|
5X |
10X |
15X |
20X |
|
Magnification |
Field of View |
Magnification |
Field of View |
Magnification |
Field of View |
Magnification |
Field of View |
|
1X |
5X |
20.0mm |
10X |
20.0mm |
15X |
15.0mm |
20X |
10.0mm |
57mm |
|
2X |
10X |
10.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5mm |
80mm |
|
3X |
15X |
7.0mm |
30X |
6.7mm |
45X |
5.0mm |
60X |
4.3mm |
61mm |
|
4X |
20X |
5.0mm |
40X |
5.0mm |
60X |
3.7mm |
80X |
3.2mm |
57mm |
|
6X |
30X |
4.0mm |
60X |
3.3mm |
90X |
2.5mm |
120X |
2.1mm |
66mm |
|
