 Descriptions£º
FEATURE:
1. Sharp stereo erect image over a wide field view.
2. 45˚ inclined and 360˚ rotational binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment +-5dp, the interpupillary distance is between 55-75mm.
3. Three kinds of 90˚ rotational objective selection: 1X/2X, 1X/3X, 2X/4X

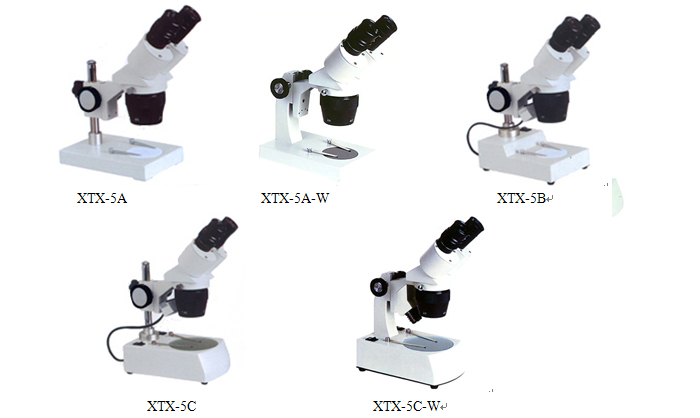

4. XTX-5(A, B, C) series supplied with pillar style stand. XTX-3(A, C)-W series supplied with arm curved style stand.
5. Electric apparatus has CE approval.
6. Power supply 110V/60Hz or 220V/50Hz.
7. Each set packed in styrofoam and in an inner box. Four sets in one carton.
8. A wide range of optional accessories
SPECIFICATIONS:
|
MODEL |
EYEPIECE |
OBJECTIVE |
PLATE |
ILLUMINATOR |
|
XTX-5A |
WF10X |
Rotated
1X-2X
1X-3X
2X-4X |
White/black |
No |
|
XTX-5A-W |
WF10X |
White/black |
No |
|
XTX-5B |
WF10X |
White/black |
Incident illumination |
|
XTX-5C |
WF10X |
Frosted glass |
Incident illumination & transmitted illumination |
|
XTX-5C-W |
WF10X |
Frosted glass |
Incident illumination & transmitted illumination |
OPTICAL DATA:
|
Objective Magnification |
EYEPIECES |
Working Distance |
|
5X |
10X |
15X |
20X |
|
Magnification |
Field of View |
Magnification |
Field of View |
Magnification |
Field of View |
Magnification |
Field of View |
|
1X |
5X |
20.0mm |
10X |
20.0mm |
15X |
15.0mm |
20X |
10.0mm |
76mm |
|
2X |
10X |
10.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5mm |
|
1X |
5X |
20.0mm |
10X |
20.0mm |
15X |
15.0mm |
20X |
10.0m |
76mm |
|
3X |
15X |
7.0mm |
30X |
6.7mm |
45X |
5.0mm |
60X |
4.3m |
|
2X |
10X |
10.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5m |
76mm |
|
4X |
20X |
5.0mm |
40X |
5.0mm |
60X |
3.7mm |
80X |
3.2m |
|
