Model
Parameters
Single Light Guide
Dual Light Guide
Ring Light Guide
Length (mm)
550
900
800
Optical Fiber (mm)
¦µ5.6
¦µ10
¦µ8
Ring Inner Dia. (mm)
/
¦µ55.5
Fluorescent ring lamp:
RFL8
RFL8-1
RFL8-2
RFL10-1
RFL10-2
RFL10-2T
Voltage
110V / 220V
Power
8W
10W
Color Temperature
2700K / 6000K
Light Adjustment
No light adjustment
Light adjustment
LED ring lamp
Connection mode between light source and light- regulating part
Be allocated with ballast (input 110V/220V)
Luminous fLux density (working distance 100mm
LED-24
4.5V / 1A
4500
LED-48
9000
LED-24T
Integrated light adjustment
24V / 250mA
520-2400
LED-48T
500-18000
LED-60T
Detachable light adjustment
12V/ 600mA
Four variable lighting modes
Fully bright
1/4
1/2
3/4
7step regulation 2600- 25000
8000
15000
21000
LED-96T
12V
6500

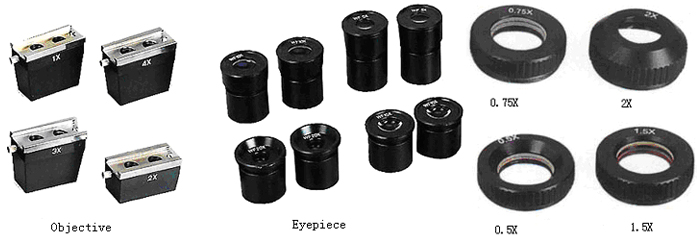

Selective accessories
Technical parameters
1X Objective
W.D.57mm
WF5X Eyepiece
¦µ20mm
2X Objective
W.D.80mm
WF10X Eyepiece
3X Objective
W.D.61mm
WF15X Eyepiece
¦µ15mm
4X Objective
SWF10X Eyepiece
¦µ22mm
5X Objective
W.D.66mm
SWF20X Eyepiece
¦µ10mm
